Scheduled Jobs Guide

Documentation Index

Fetch the complete documentation index at: https://developer.kodexa.ai/llms.txt

Use this file to discover all available pages before exploring further.

This guide describes the workflow for creating and managing scheduled jobs in the Kodexa platform.

​

Accessing Scheduled Jobs

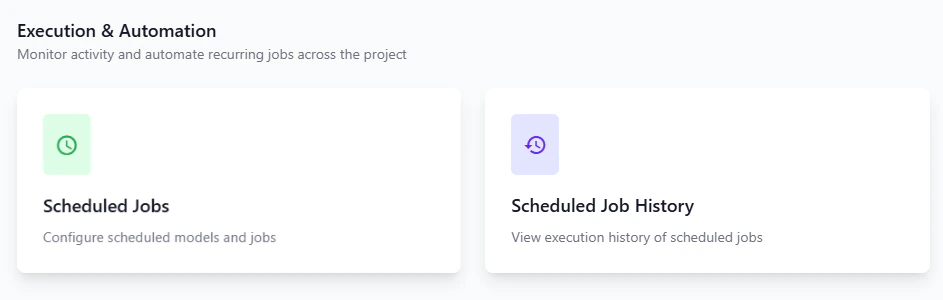

Once you have navigated to a project, the Execution & Automation section provides access to scheduled job functionality with two main options:

• Scheduled Jobs: Configure scheduled models and jobs
• Scheduled Job History: View execution history of scheduled jobs

​

Creating a New Scheduled Job

​

Step 1: Navigate to Scheduled Jobs

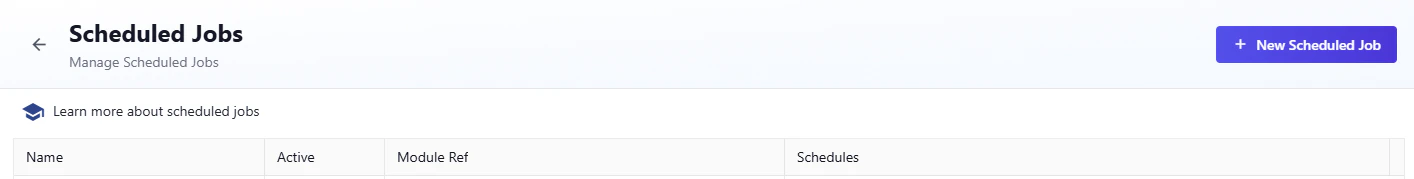

From the Scheduled Jobs page, you’ll see a table listing all configured scheduled jobs with columns for:

• Name
• Active status
• Module Reference
• Schedules

Click the + New Scheduled Job button to create a new scheduled job.

​

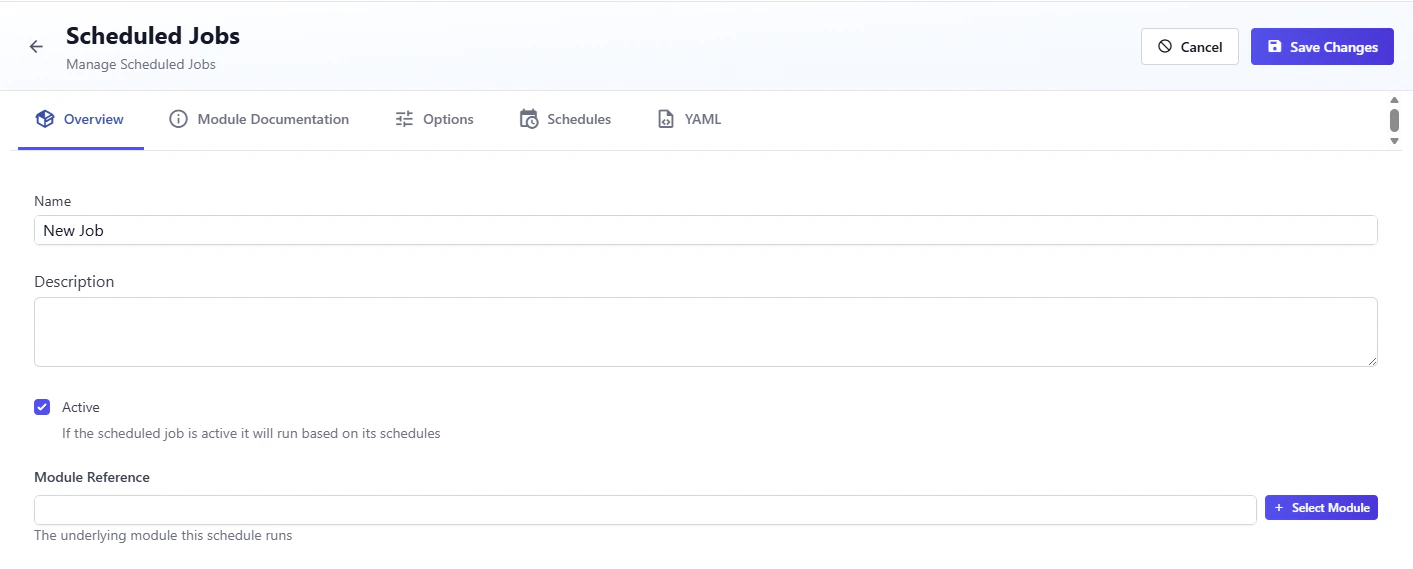

Step 2: Configure Job Overview

The job configuration interface provides several tabs:

• Overview: Basic job information
• Module Documentation: View documentation for the selected module
• Options: Configure module-specific options
• Schedules: Define when the job runs
• YAML: View/edit raw YAML configuration

On the Overview tab, configure the following:

​

Name

Enter a descriptive name for your scheduled job (e.g., “Large document processing”).

​

Description

Optionally provide a detailed description of what this job does.

​

Active

Check this box if you want the scheduled job to run based on its schedules. If unchecked, the job will not execute even if schedules are defined.

​

Module Reference

Select the underlying module that this schedule will run.

​

Step 3: Select a Module

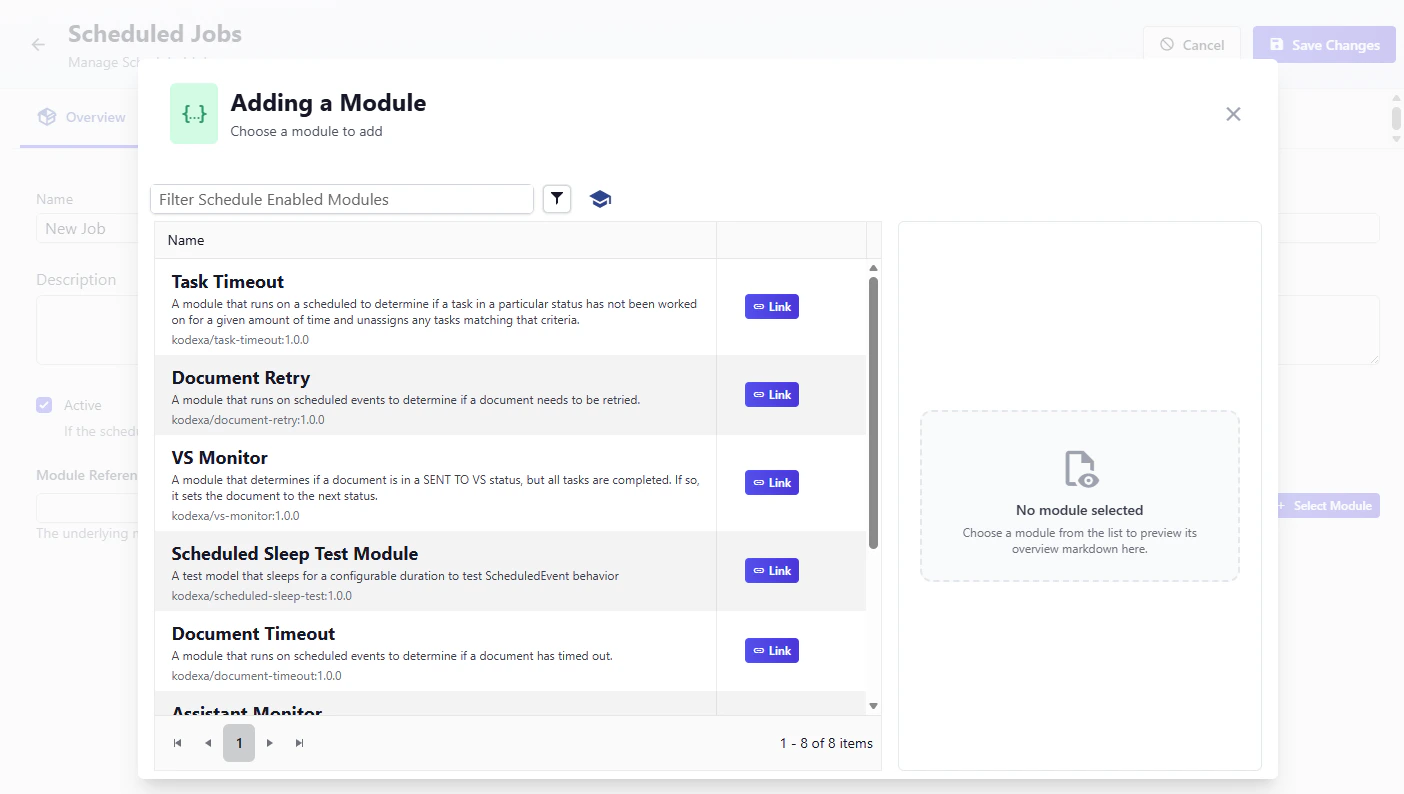

Click the + Select Module button to open the module selection dialog. The “Adding a Module” dialog displays a filterable list of schedule-enabled modules. Each module shows:

• Module name and description
• Module reference (e.g., kodexa/task-timeout)
• A Link button to select it

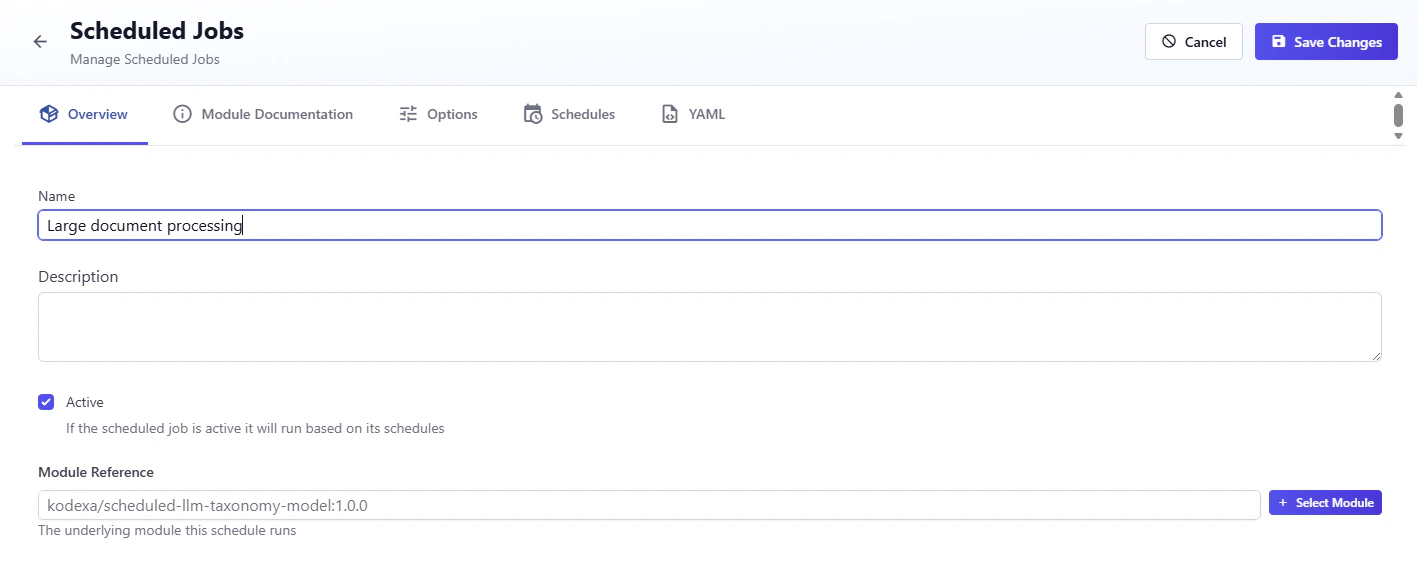

Click Link next to the desired module to select it. The module reference will populate in the form (e.g., kodexa/scheduled-llm-taxonomy-model).

​

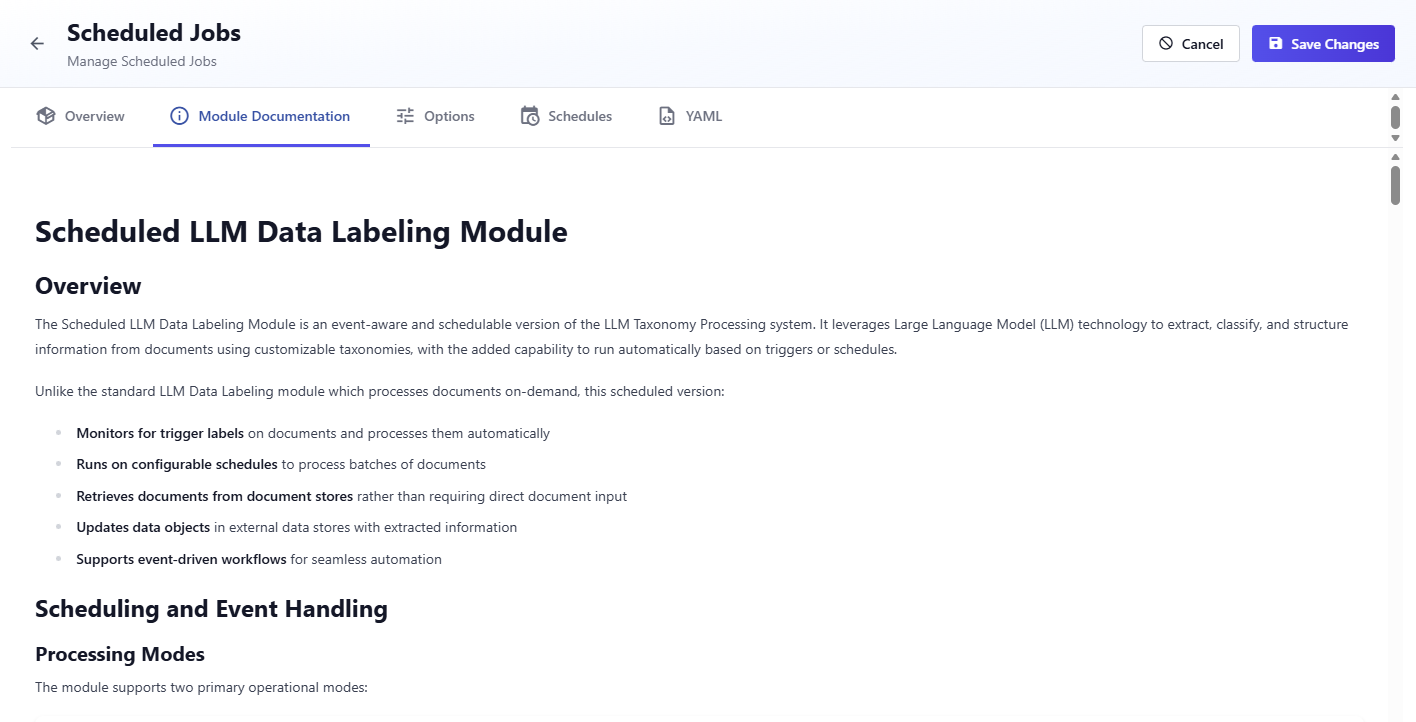

Step 4: Review Module Documentation

After selecting a module, click on the Module Documentation tab to review the module’s documentation and understand how it works. The documentation provides detailed information about the module’s purpose, configuration options, and usage examples. This helps you understand what the module does and how to configure it properly.

​

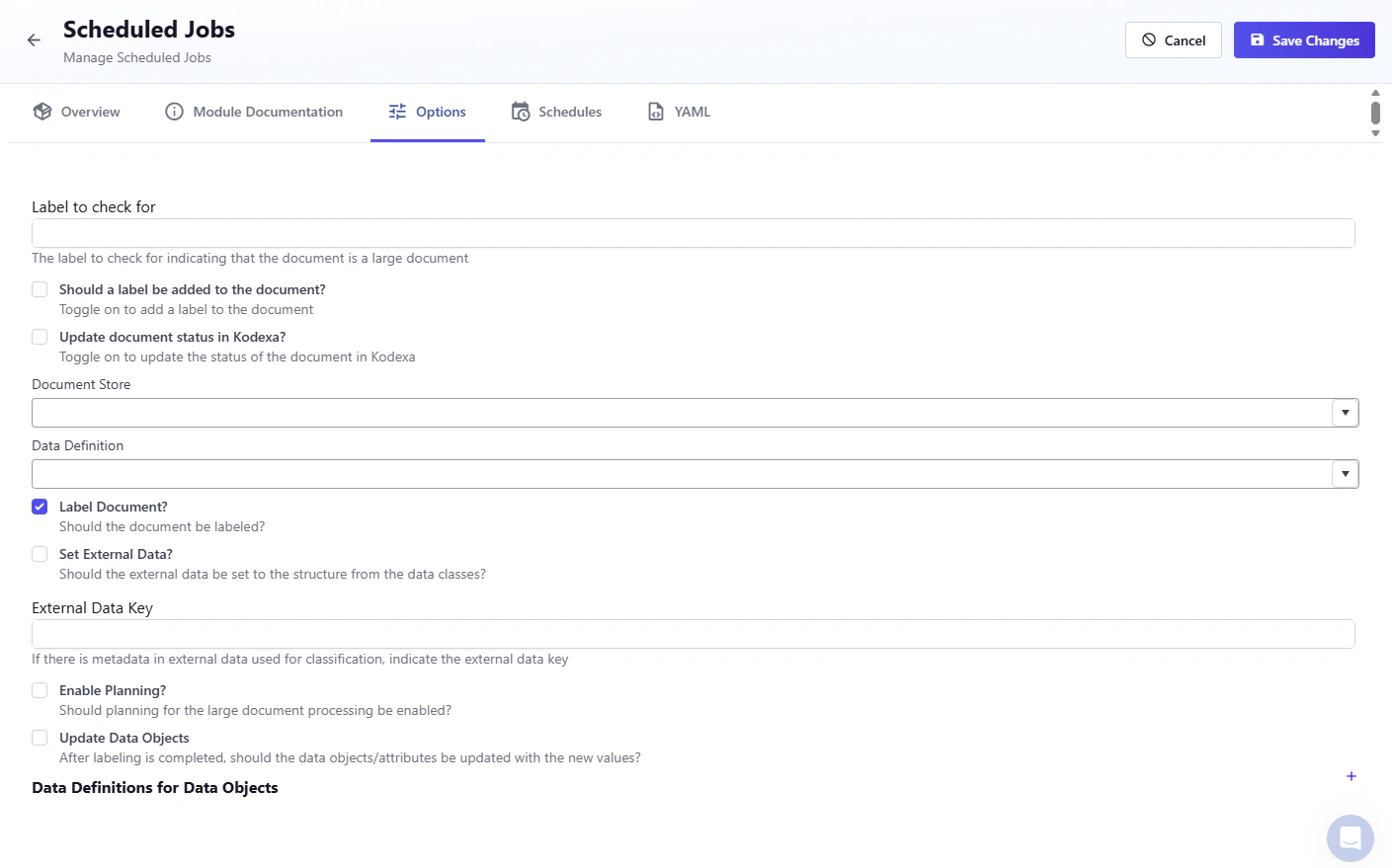

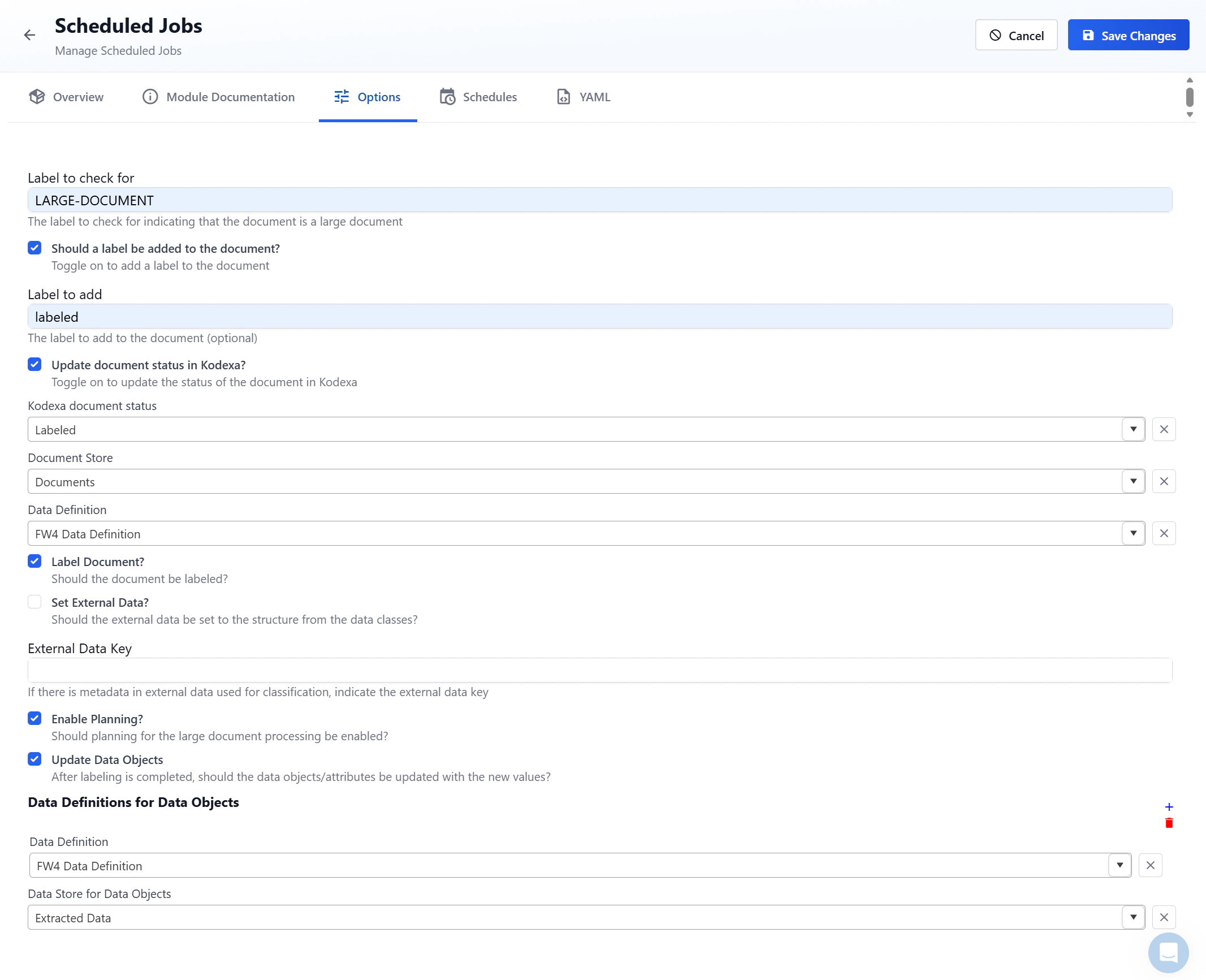

Step 5: Configure Module Options

Navigate to the Options tab to configure the module-specific settings. Each module has different options based on its functionality. Review the description for each option carefully to understand what it does and how it affects the module’s behavior. The options shown will vary depending on which module you selected. Take time to read through each option’s description and configure them according to your needs. Some options may be required while others are optional.

​

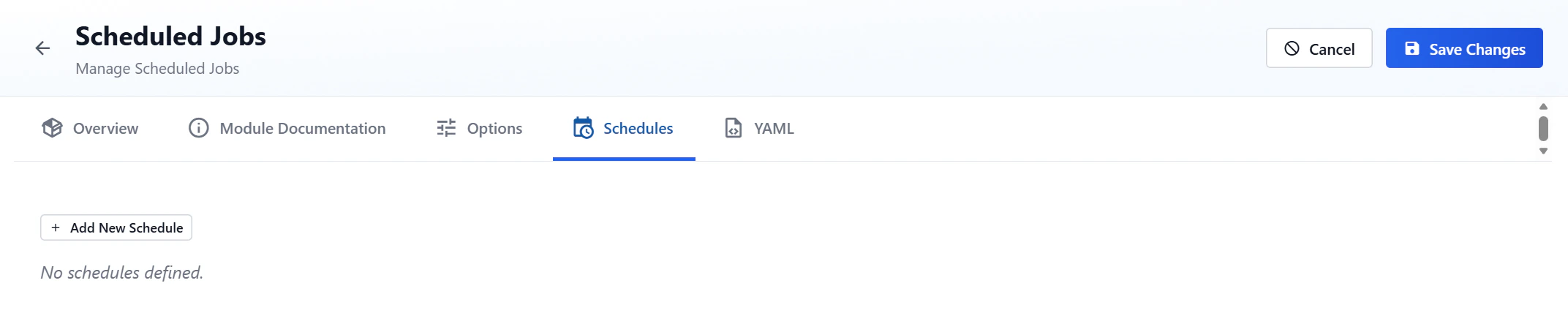

Step 6: Configure Schedules

Navigate to the Schedules tab to define when your job should run. Click + Add New Schedule to create a new schedule.

​

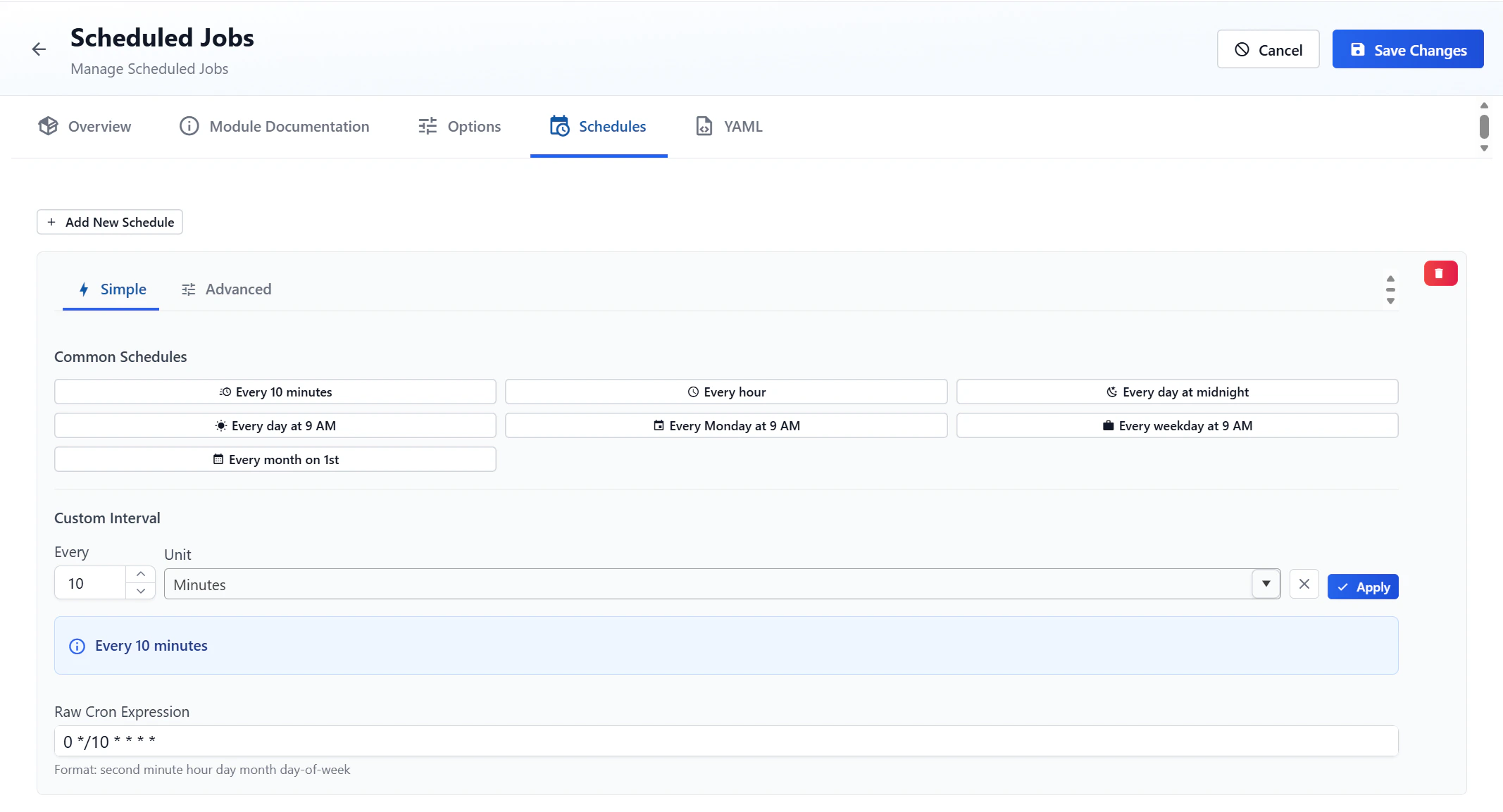

Simple Schedule Configuration

The Simple tab provides easy-to-use scheduling options: Common Schedules:

• Every 10 minutes
• Every hour
• Every day at midnight
• Every day at 9 AM
• Every Monday at 9 AM
• Every weekday at 9 AM
• Every month on 1st

Custom Interval: Configure a custom interval by specifying:

• Every: Number value (e.g., 10)
• Unit: Time unit dropdown (Minutes, Hours, Days, etc.)

The schedule preview shows the resulting schedule (e.g., “Every 10 minutes”) Raw Cron Expression: View the generated cron expression (e.g., 0 */10 * * * *) Format: second minute hour day month day-of-week

​

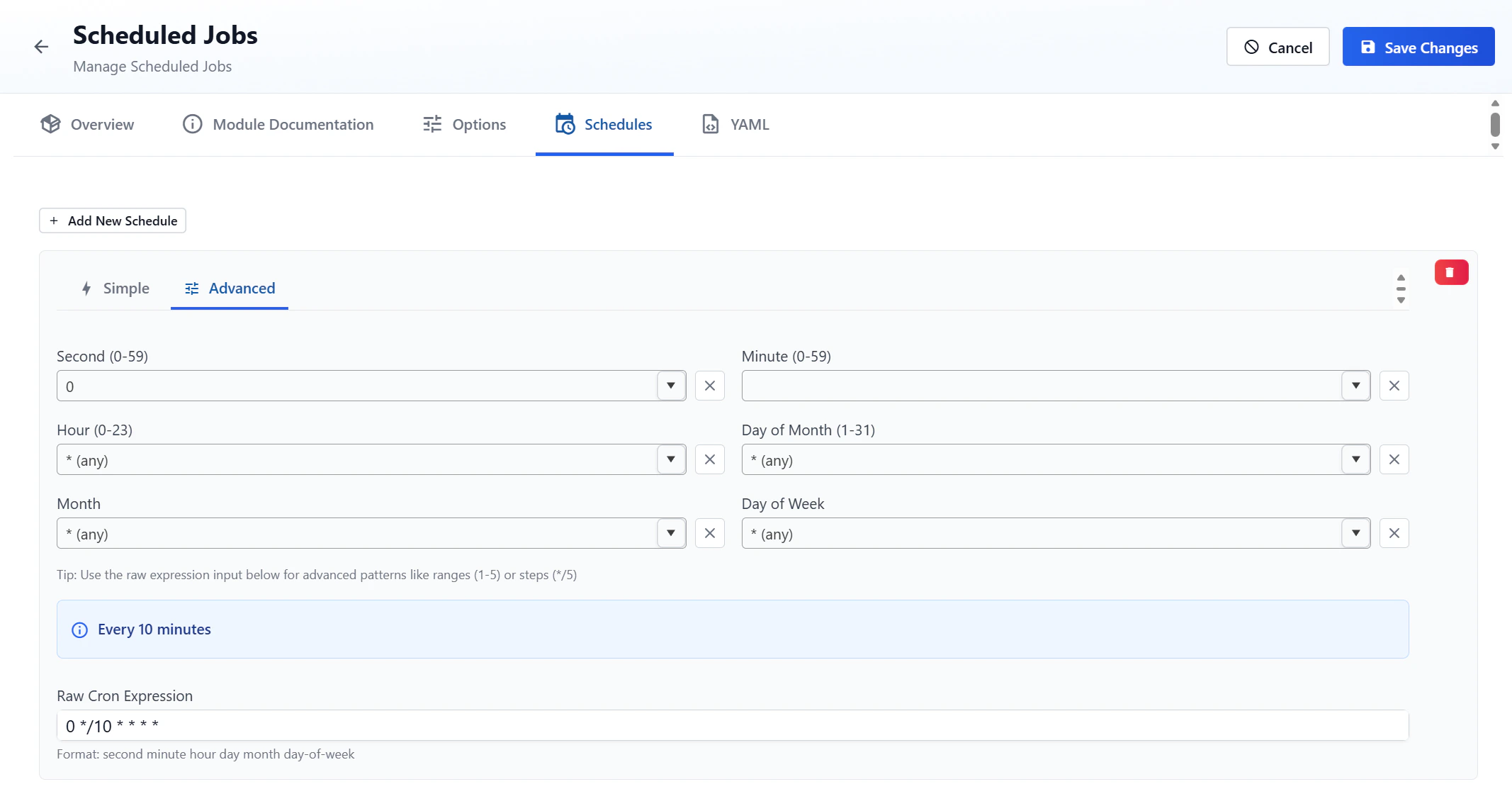

Advanced Schedule Configuration

The Advanced tab provides fine-grained control over the cron schedule: Configure each component of the cron expression:

• Second (0-59): Specific second(s) or * (any)
• Minute (0-59): Specific minute(s) or * (any)
• Hour (0-23): Specific hour(s) or * (any)
• Day of Month (1-31): Specific day(s) or * (any)
• Month: Specific month(s) or * (any)
• Day of Week: Specific day(s) or * (any)

The schedule preview updates automatically (e.g., “Every 10 minutes”) Raw Cron Expression: Shows the generated expression: 0 */10 * * * *

​

Step 7: Save the Scheduled Job

After completing all the configuration steps above (job name, module selection, module options, and schedules), click the Save Changes button to create the scheduled job. The job will now appear in the Scheduled Jobs list and will execute according to its defined schedules when active.

​

Managing Scheduled Jobs

From the main Scheduled Jobs page, you can:

• View all configured scheduled jobs
• See which jobs are active
• View the module each job uses
• See configured schedules
• Edit existing jobs by clicking on them
• Monitor job execution via the Scheduled Job History page

​
